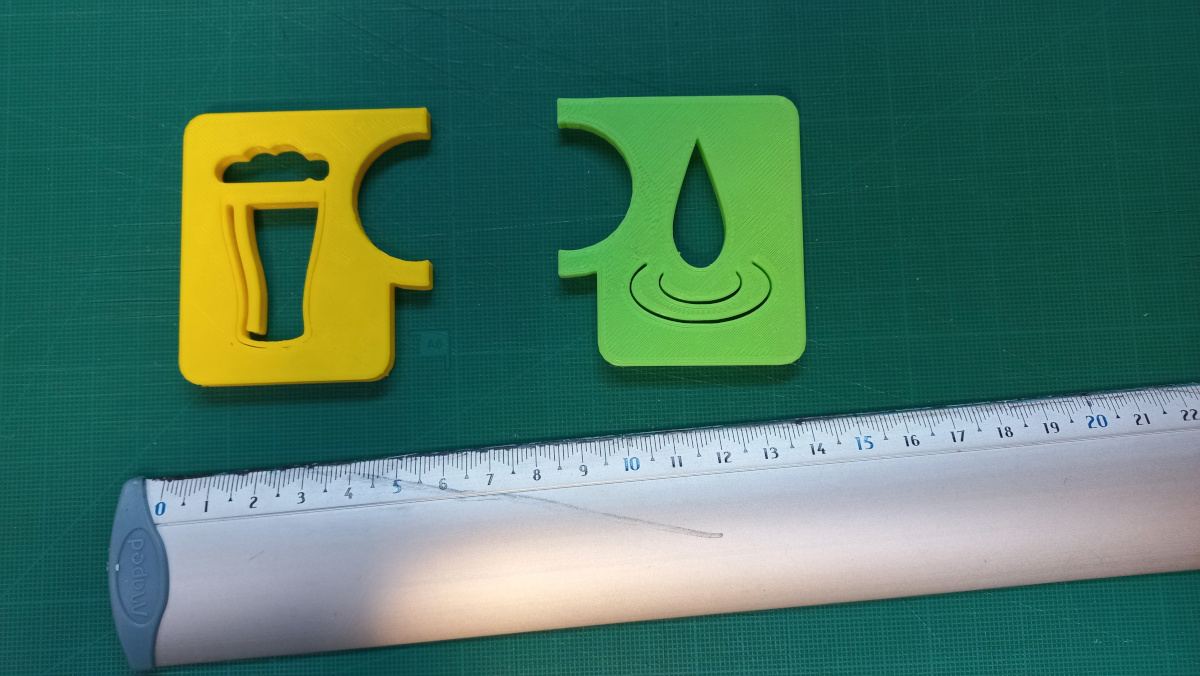

Éléments de signalétique pour le kafe

Robinet eau.scad

color ([0, 0, 1]) difference(){

    union(){ // Ajouts de matière
        minkowski(){
            translate([0, 0, -3]) cube([50,35,4],center = true);
            cylinder(h=1,r=5);
        }
        translate ([-10, 29, -5]) cylinder (h=5, d=40);
        translate([-30, 11, -5]) cube([5, 20,5]);
    }

    // Enlèvement de matière
    translate ([-10, 29, -6]) cylinder (h=7, d=29.2);
    translate ([-30, 31,-6 ]) cube ([50, 35, 8]);
    linear_extrude(height = 10, center = true, convexity = 10) {
    	rotate([0, 0, 90]) scale([0.4, 0.6, 10]) // DIMENSSIONS IMAGE
    	import(file = "eau.svg", center = true); // IMAGE IMPORTEE
    }
}

difference(){
    union(){ // Ajouts de matière
        minkowski(){
            translate([0, 0, -3]) cube([50,35,4],center = true);
            cylinder(h=1,r=5);
        }
        translate ([-10, 29, -5]) cylinder (h=5, d=40);
        translate([-30, 11, -5]) cube([5, 20,5]);
    }

    // Enlèvement de matière
    translate ([-10, 29, -6]) cylinder (h=7, d=29.2);
    translate ([-30, 31,-6 ]) cube ([50, 35, 8]);
    linear_extrude(height = 10, center = true, convexity = 10) {
    	translate ([0, -3, 0]) rotate([0, 0, 90]) scale([0.25, 0.25, 10]) // DIMENSSIONS IMAGE
    	import(file = "biere.svg", center = true); // IMAGE IMPORTEE
     }
}
